ZTX6 54 - Ultima Series™ ZTX - Cub Cadet
Description
Commercial-Grade Components. Professional-Quality Cut. Premium Comfort.
The Cub Cadet Ultima Series ZTX6 54 is a premium residential/commercial-crossover zero-turn that borrows heavily from Cub Cadet’s commercial lineup. Featuring a 25.5 HP Kawasaki V-Twin, commercial dual Hydro-Gear transmissions, a rugged tubular steel frame, and a 54-in. AeroForce™ Max fabricated deck, it’s built for homeowners with larger properties who want commercial-grade performance.
Power comes from a 25.5 HP Kawasaki FX801 V-Twin OHV engine (852cc) paired with commercial-grade dual Hydro-Gear® ZT-3400 hydrostatic transmissions that push ground speeds to 9 mph forward and 3.5 mph reverse. The 54-in. AeroForce™ Max robotically welded fabricated deck is built from 10-gauge reinforced steel with side, top, and leading-edge reinforcements and maintenance-free spindles, designed for few clumps, fine clippings, and exceptionally even cut quality.
The 24-in. high-back seat features independent suspension, cushioned armrests, a ball-bearing seat slide, and advanced polymer isolators so you stay comfortable at full mowing speed. Standard LED headlights, overmolded soft-touch grips, and independently sprung caster wheels round out a long day of mowing.
Specifications
Engine: Kawasaki FX801 V-Twin OHV, 852cc, 25.5 HP
Transmissions: Dual commercial Hydro-Gear® ZT-3400 hydrostatic
Forward Speed: Up to 9 mph / Reverse: 3.5 mph
Cutting Deck: 54-in. AeroForce™ Max, 10-gauge fabricated reinforced steel
Blades: Three smooth-arc high-lift
Deck Positions: 15 (foot pedal with dial adjust)
Fuel Capacity: 5.5 gal. US (20.82 L)
Frame: 1.5 in. x 3 in. tubular steel
Rear Axle: 1.125 in.
Battery: 12V, 230 CCA
Tires: Turf Master / Multi Trac
Features
Electric PTO blade engagement

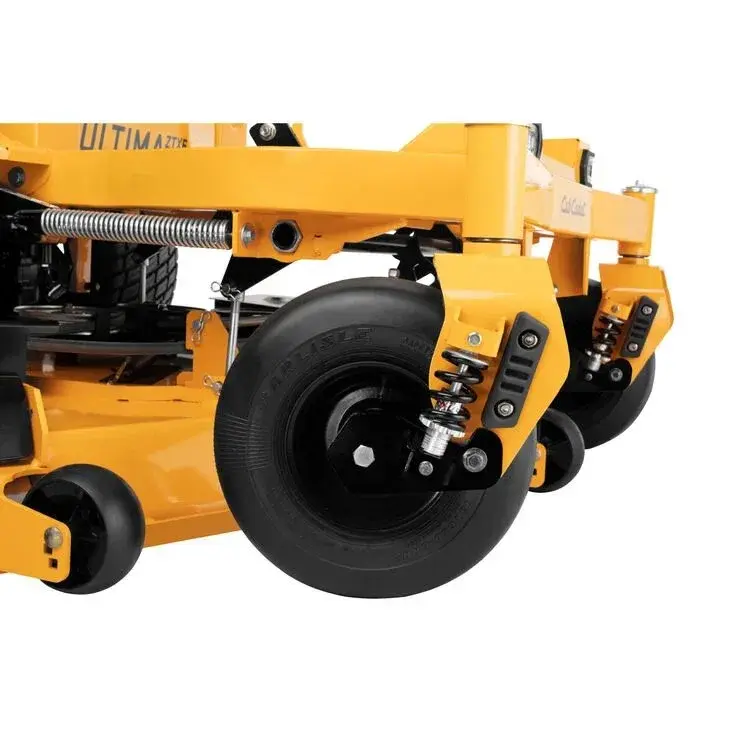

Independent suspension caster wheels for smoother ride
Premium 24-in. high-back seat with independent suspension, cushioned armrests, and ball-bearing slide
Advanced polymer seat isolators reduce vibration
Overmolded soft-touch hand grips and rubber floor mat
Standard LED headlights
Three anti-scalp gauge wheels
Fuel gauge and rear tow hitch
Corrosion-protected finish
Top-discharge deck with 9-in. boot for efficient bagging
Accepts Cub Cadet Xtreme Mulching Kit and Triple Bagger (54" and 60" deck compatible)
Compatible with 52-in. all-season plow blade attachment and heavy-duty striping kit
4-year / 800-hour residential warranty plus limited lifetime frame and deck shell warranty
